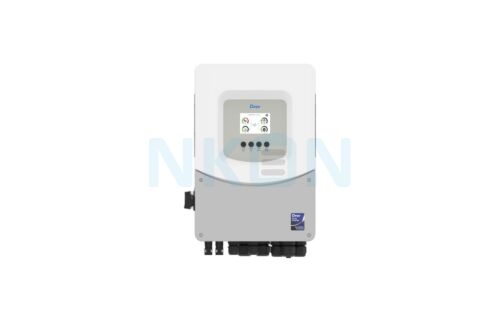

Deye SUN-5K-SG06LP1-EU- BM2 5kW - Single phase - Hybride LV inverter

The Deye SUN-5K-SG06LP1-EU-BM2 is a powerful 5kW low-voltage hybrid inverter designed for residential and small commercial energy storage systems. This single-phase inverter intelligently combines solar power generation, battery storage, and grid management into one advanced solution. Supporting both lithium and lead-acid batteries, with a battery voltage range of 40-60V and a maximum charge/discharge current of 120A, it provides exceptional flexibility for a wide range of home battery installations.

The inverter delivers a rated AC output power of 5,000W and supports up to 10,000W of PV input through two independent MPPT trackers. With a maximum efficiency of 97.6%, solar energy is converted and utilized with minimal losses. The integrated backup power function ensures that essential appliances remain powered during grid outages.

In addition, the Deye SUN-5K-SG06LP1-EU-BM2 offers a wide range of smart energy management features, including time-based charging and discharging, zero-export functionality, smart load control, and generator integration. Through WiFi, CAN, and RS485 communication interfaces, the system can be easily monitored and managed via the Deye Cloud platform. Its IP65-rated enclosure makes it suitable for both indoor and outdoor installations.

Extra features: LCD color touchscreen, WiFi monitoring, CAN, RS485, generator support, dual MPPT, UPS function, smart load output, scheduled charging/discharging, parallel operation of up to 16 inverters, IP65 protection, backup power supply.
