Victron Energy 6-way fuse holder for Mega fuse with busbar
Product specifications
Product description
Extra information
Reviews
Documents
In stock
€25.95
Shipping cost to Ukraine: €3.48 (1 item)

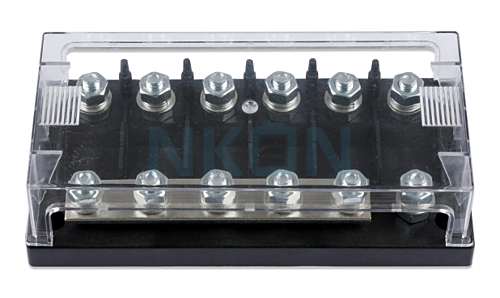

The MEGA Fuseholder Megaoto is designed to house a maximum of 6 MEGA fuses from 40A to 300A. This fuse holder supports cable thicknesses up to 70 mm² and a maximum current of 300A. For higher fuse values it is recommended to use a fuse holder that can handle a higher power. The connections on both sides of the fuse holder are located at the ends.
The transparent cover is removable, making the fuse status visible without having to remove the cover.
The connection/threaded end for the cables, as well as for the MEGA fuse itself, is M8. The fuse holder can be securely attached to a back plate or bulkhead using 4 screws (not included).
Specifications:
Suitable for 6 MEGA fuses/fuse
Dimensions: 38x43x121 mm
Threaded ends: M8
Weight: 0.40kg
Product code: CIP050060000
The transparent cover is removable, making the fuse status visible without having to remove the cover.
The connection/threaded end for the cables, as well as for the MEGA fuse itself, is M8. The fuse holder can be securely attached to a back plate or bulkhead using 4 screws (not included).
Specifications:
Suitable for 6 MEGA fuses/fuse
Dimensions: 38x43x121 mm
Threaded ends: M8
Weight: 0.40kg
Product code: CIP050060000
